Product details

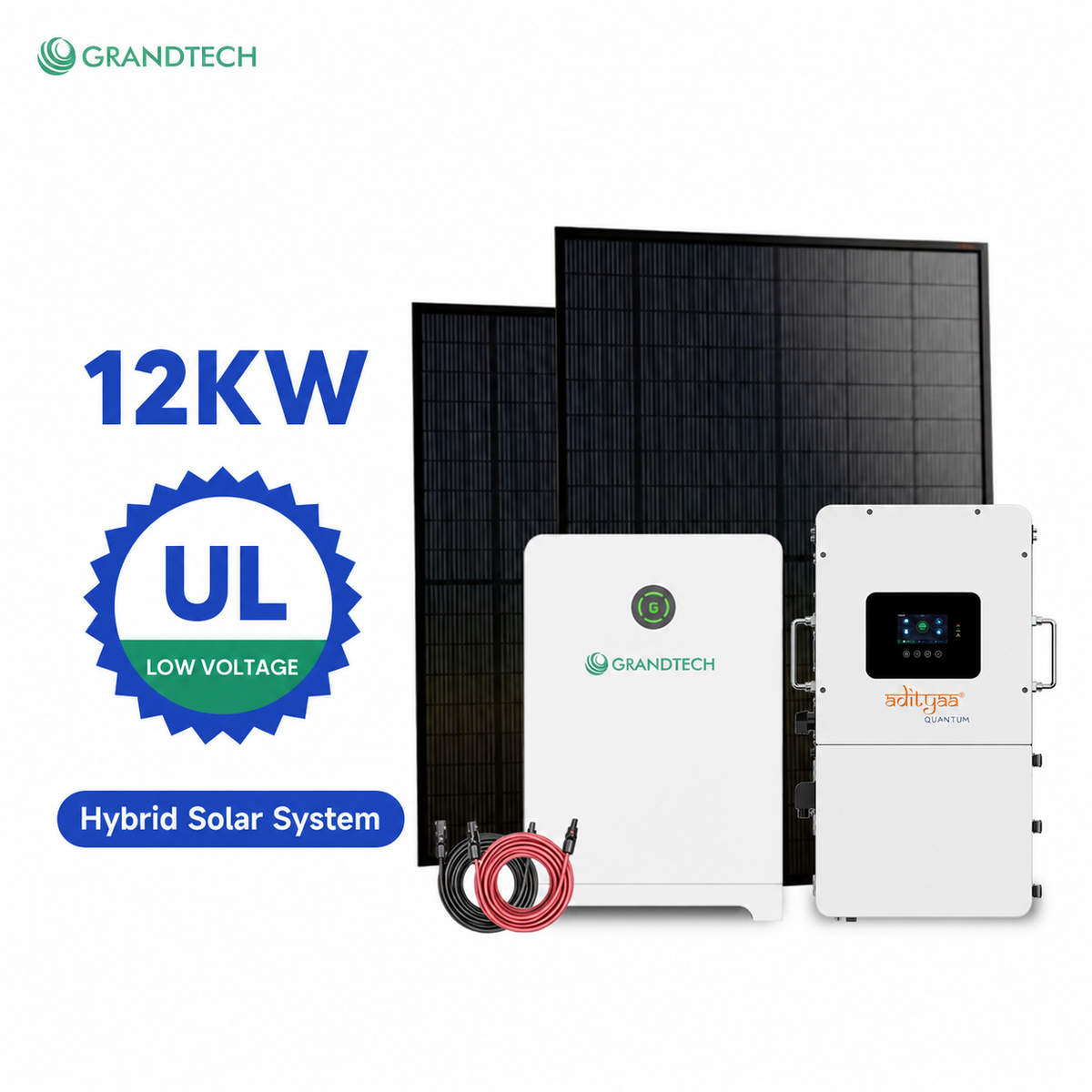

Grandtech 8, 10 and 12 kW Split-Phase Solar Kits
This Grandtech hybrid solar energy system is offered in 8 kW, 10 kW and 12 kW configurations for 120/240 V split-phase projects. A configuration can combine solar panels, a hybrid inverter and battery storage. Check the written equipment list for the inverter model, panel count, battery capacity and accessories included in your quote.
How do I size the inverter and battery?
Use inverter output in kW to compare the loads that may run at the same time. Use battery capacity in kWh to estimate how long those loads can run. Note the appliances you want to back up and their starting requirements, then use the solar system calculator to estimate a starting configuration.
Which components are shown below?
The tabs show specifications for the 445 W and 590 W solar panel options, the ADHI-GT-US-12 inverter, and the GSL 51.2 V, 280 Ah LiFePO4 battery. The 12 kW inverter specifications apply to the model named in its tab. Confirm the exact components for the 8 kW or 10 kW option in your quote.
Solar Energy System Specifications
Solar Panels
| Specification | 445W Solar Panel | 590W Solar Panel |
|---|---|---|
| Nominal Power (Pmax) | 445 W | 590 W |
| Maximum Power Voltage (Vmp) | 32.21 V | 42.87 V |
| Maximum Power Current (Imp) | 13.82 A | 13.77 A |
| Open Circuit Voltage (Voc) | 38.90 V | 51.7 V |
| Short Circuit Current (Isc) | 14.68 A | 14.48 A |
| Module Efficiency | 22.79% | 22.83% |
| Solar Cells | N-type Monocrystalline | N-type Monocrystalline |
| Module Dimensions | 1722 × 1134 × 30 mm | 2278 × 1134 × 30 mm |
| Product Warranty | 15 Years | 15 Years |
| Output Guarantee | 30 Years | 30 Years |
| Origin | Made in USA | Assembled in USA |
12kW PRO Inverter
| Specification | ADHI-GT-US-12 |
|---|---|
| Rated Output Power | 12,000 W |
| AC Output Voltage | 120/240 Vac (L1 + L2 + N + PE) |
| Battery Voltage | 40–60 Vdc (48 Vdc Nominal) |
| MPPT Trackers | 2 |
| Maximum Hybrid Charging Current | 240 Adc |
| Maximum Bypass Overload Current (Grid) | 200 A |
| Parallel Capability | Up to 6 Units |
| Protection Rating | IP65 |
| Warranty | 5 Years |
| Certifications | UL1741 & IEEE1547.1-2020, CEC, Rule 21, HECO |
GSL 14kWh UL Battery
| Model | GSL-051280A-B-GBP2F |
|---|---|
| Battery Chemistry | LiFePO₄ |
| Nominal Voltage | 51.2 V |
| Rated Capacity | 280 Ah |
| Charging / Discharging Current | 100 A (150 Adc Max) |
| Cycle Life | ≥8,500 cycles (25 ± 2°C, 0.5C/0.5C, 80% EOL) |
| Parallel Capability | Up to 16 Units |
| Communication | CAN, RS485, WiFi, Bluetooth |
| Protection Rating | IP65 |
| Warranty | 10 Years |
| Certifications | UL1973, UL9540A, CB-IEC62619, CE-EMC, UN38.3, MSDS, UL9540 |
Request a configuration and equipment list
Request a project quote with your installation location, loads, target backup time and preferred kit size. Ask Grandtech to confirm component models and quantities, battery capacity, included accessories and delivery lead time.
