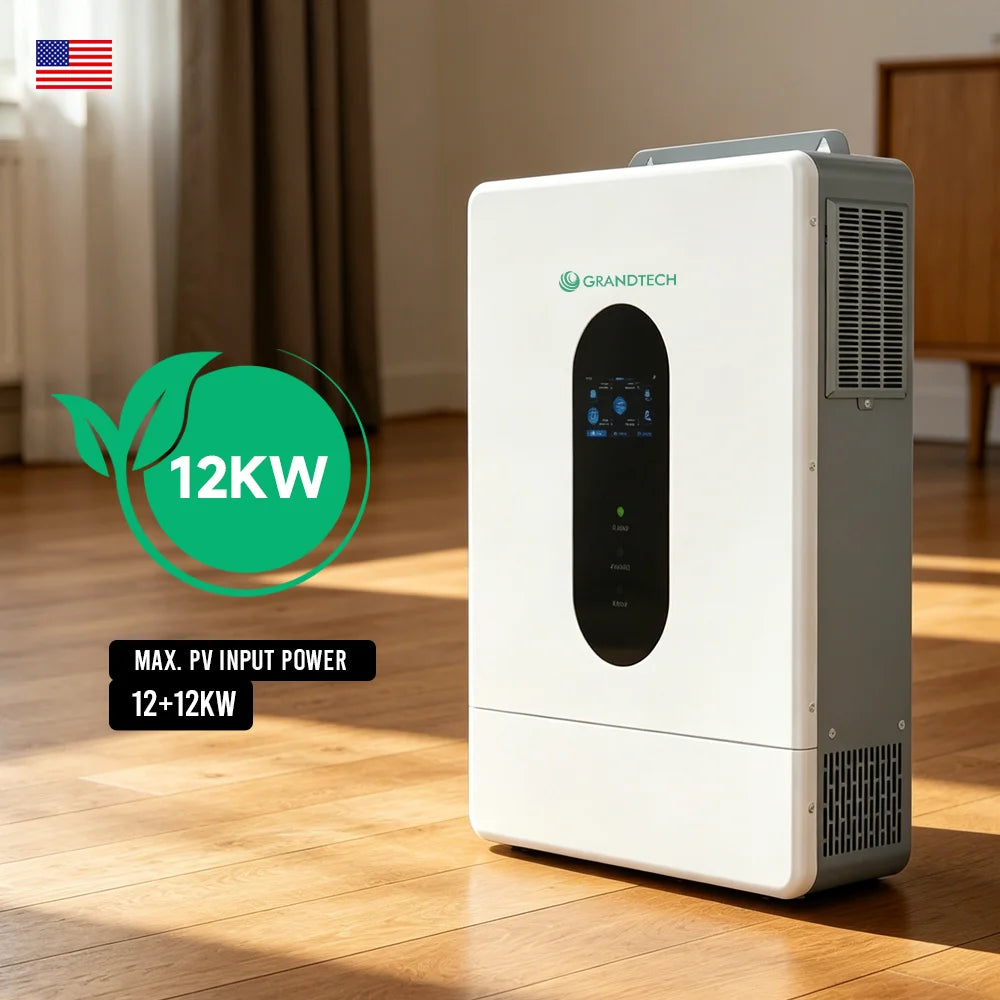

Grandtech GES48120M250-500XP 12kW Off Grid Solar Inverter – 48V 120/240V Split Phase

$950.00

Model: GES48120M250-500XP

  • 12kW native 120/240V split-phase output for North American systems
  • Dual MPPT with up to 24kW PV input
  • 10ms UPS transfer for critical loads
  • Compatible with 48V/51.2V LiFePO4 and lead-acid batteries
  • Grid, generator and smart WiFi monitoring ready
  • Up to 6 units in parallel for 72kW total output
Check delivery time
United States delivery estimate
Accepted payment methods
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Request installer or project pricing →
Specifications and information

Product details

The Grandtech GES48120M250-500XP 12kW off grid solar inverter is built for an off grid solar system with 48V battery storage and native 120/240V split-phase output. This off grid inverter combines solar charging, battery power and flexible backup inputs in one unit. If you need a solar inverter for home applications, it offers a practical foundation for powering household circuits, remote properties and essential equipment with a correctly sized installation.

12kW Off Grid Solar Inverter for Independent Power

Generate electricity during daylight hours and store surplus energy in compatible batteries for later use. Dual MPPT tracking supports arrays with different orientations, helping the installation make use of available sunlight. The inverter supplies AC power to connected loads, while battery capacity and daily energy consumption determine how long those loads can operate without additional charging.

Key Features

  • 12,000W rated output: Native 120/240V split-phase power supports North American household circuits and suitable light-commercial equipment. Check both continuous demand and appliance starting requirements when planning loads.
  • Dual MPPT solar charging: Two independent trackers support up to 24kW PV input and provide flexibility for array design. Match string voltage and current to the installation manual before connecting panels.
  • 10ms UPS transfer: Fast backup switching supports essential circuits during an interruption. Confirm the connected equipment can tolerate the specified transfer time.
  • 48V battery platform: Works with compatible 48V/51.2V LiFePO4 and lead-acid battery banks within the specified voltage range. Confirm battery settings and BMS compatibility during commissioning.
  • Flexible backup inputs: Generator or utility charging can supplement solar production when available, helping maintain battery charge during extended cloudy weather.
  • Parallel expansion: Connect up to six compatible units for up to 72kW combined rated output, with appropriate system design, wiring and protection.
  • Monitoring and indoor installation: WiFi monitoring helps track operation. IP21 protection requires a suitable protected indoor location. The listed warranty is two years.

Off Grid Inverter with Battery and Generator Support

Build around your actual energy needs, from refrigeration and lighting to selected pumps and workshop tools. A generator can provide another charging source when sunlight is limited. Set charging limits to suit the battery bank and the available input supply, and have a qualified installer configure source priorities for the intended operating schedule.

Technical Specifications

Parameter Specification
Model GES48120M250-500XP
Rated Output Power 12,000W
AC Output Voltage 120/240Vac(L1+L2+N+PE)
Battery Voltage 40–60Vdc (48Vdc Nominal)
MPPT Trackers 2
Maximum Hybrid Charging Current 250Adc
Max.BypassOverloadCurrent(Grid) 63A
Parallel Capability Up to 6 Units
Protection Rating IP21
Warranty 2 Years
Certifications UL1741, FCC15classB

Planning Your Off Grid Solar System

Start by listing appliance wattage, starting demand and daily operating hours. An off grid solar system needs enough panel capacity to replenish the batteries as well as supply daytime consumption. Allow for seasonal sunlight, conversion losses and the number of cloudy days you want to cover. Larger batteries extend runtime, but they also require sufficient charging capacity.

Choosing a Solar Inverter for Home Loads

Match the 12kW rating to the circuits you intend to supply. Refrigerators, lighting, communication equipment and selected household appliances may be included after a load assessment. Large motors, electric heating and EV charging need particular attention because simultaneous demand can exceed the available output. A solar inverter for home backup should be selected together with the battery bank, rather than judged by inverter wattage alone.

Off Grid Inverter Applications

  • Remote homes and cabins with limited utility access.
  • Residential battery backup for selected essential circuits.
  • Farms, workshops and small premises with appropriately sized loads.
  • Expandable installations where future demand may require additional units.

Off Grid Solar Inverter FAQs

What else does an off grid solar system require?

You need compatible PV panels, battery storage, correctly rated cables, protective devices and suitable electrical distribution. The inverter is one component of the installation. Grandtech can help review the proposed configuration before ordering.

Which batteries work with this off grid inverter?

Use compatible 48V or 51.2V batteries within the stated 40–60Vdc range. Confirm charging settings, discharge capability and supported BMS communication for the chosen battery model.

Can this off grid solar inverter charge from a generator?

Yes. Generator charging provides an additional energy source when solar production is insufficient. Confirm generator sizing, input requirements and charging settings before installation.

Is this a suitable solar inverter for home installation?

It provides 120/240V split-phase output for compatible residential systems. Suitability depends on local requirements, appliance demand and installation design. Contact Grandtech for product documentation, configuration support or OEM/ODM enquiries.

How does this model compare with the Grandtech 12 kW inverter with built-in breakers?

Both the GES48120M250-500XP and the GTOF51120US2P03 list 12 kW rated output and 120/240 V split-phase output. The GTOF51120US2P03 is listed with built-in circuit breakers. Check the exact model datasheet for the AC input, bypass and protection specifications your project requires.

Request a project quote with your target loads, battery model and installation location.

Product support

Frequently asked questions

Answers based on this product's specifications and typical project planning requirements.

Does this inverter provide 120/240V split-phase output?

Yes. It provides native 120/240V split-phase output for North American residential and light-commercial systems.

Which batteries are compatible with this 12kW inverter?

It supports 48V/51.2V LiFePO4 and lead-acid battery banks. Confirm the battery model, BMS communication protocol and required charge settings before installation.

Can multiple inverters operate in parallel?

Yes. Up to six units can operate in parallel, providing up to 72kW of combined output when designed and commissioned correctly.

Can it provide backup power during a grid outage?

Yes. The inverter supports backup operation and a 10ms transfer time for critical loads. Final backup performance depends on the battery capacity, connected loads and system design.
