Product details
The Grandtech GTHB51180US2P-02 is an 18 kW hybrid solar inverter for 120/240 V split-phase systems. It combines solar input, a 48 V nominal battery system (40–60 V DC), and backup power management. The specifications below apply to the 18 kW model. Ask Grandtech for the datasheet and availability of the 15 kW and 16 kW versions.

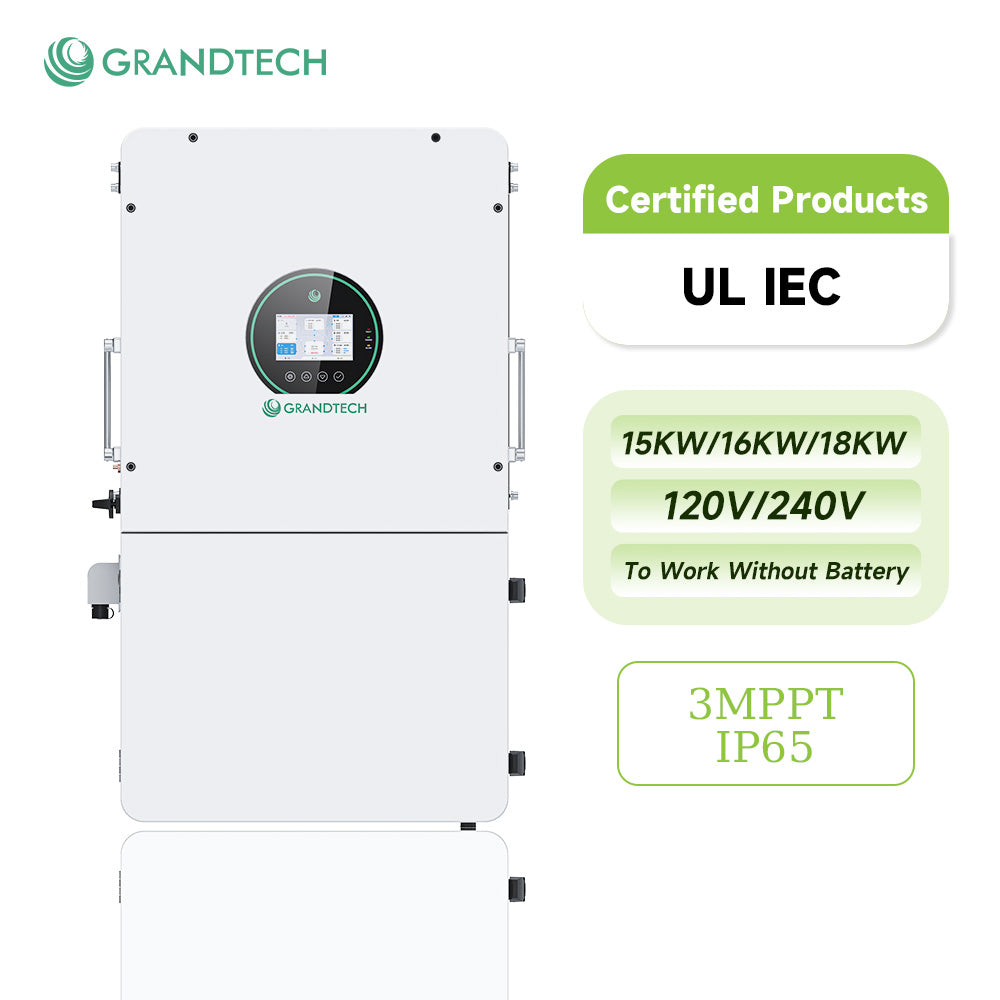

GRANDTECH 15/16/18kW Hybrid Solar Inverter - 120/240V Split Phase
Key Features
- Three independent MPPT trackers for flexible solar array design.
- The 18 kW version supports up to 36 kW of PV input across three independent MPPT channels, with up to 12 kW per channel.
- Charge and discharge current up to 380A, depending on the selected model.
- Parallel operation of up to 9 units for system expansion.
- Independent generator port and smart load management.
- Supports off-grid operation and backup power during outages.
Product Specifications
| Model | GTHB51180US2P-02 |
|---|---|
| Rated Output Power | 18,000 W |
| AC Output Voltage | 120/240 Vac, Split Phase (L1 + L2 + N + PE) |
| Battery Voltage | 40–60 Vdc (48 Vdc Nominal) |
| MPPT Trackers | 3 |
| Maximum Hybrid Charging Current | 380 Adc |
| Maximum Bypass Overload Current (Grid) | 200 A |
| Parallel Capability | Up to 9 Units |
| Protection Rating | IP65 |
| Warranty | 5 Years |
| Certifications & Standards | UL 1741-2021 (UL 1741 SB) CSA C22.2 No. 107.1-16 IEC 62109-1 IEC 62109-2 EN 61000-6-1 EN 61000-6-3 FCC Part 15 Class B |
The table lists specifications for the GTHB51180US2P-02 model. Confirm the exact model, rated output, battery compatibility, PV design limits and installation requirements before ordering. No battery, solar panels or installation accessories are specified as included in this inverter listing.
